Rails, Lift Arms, Cam Lift

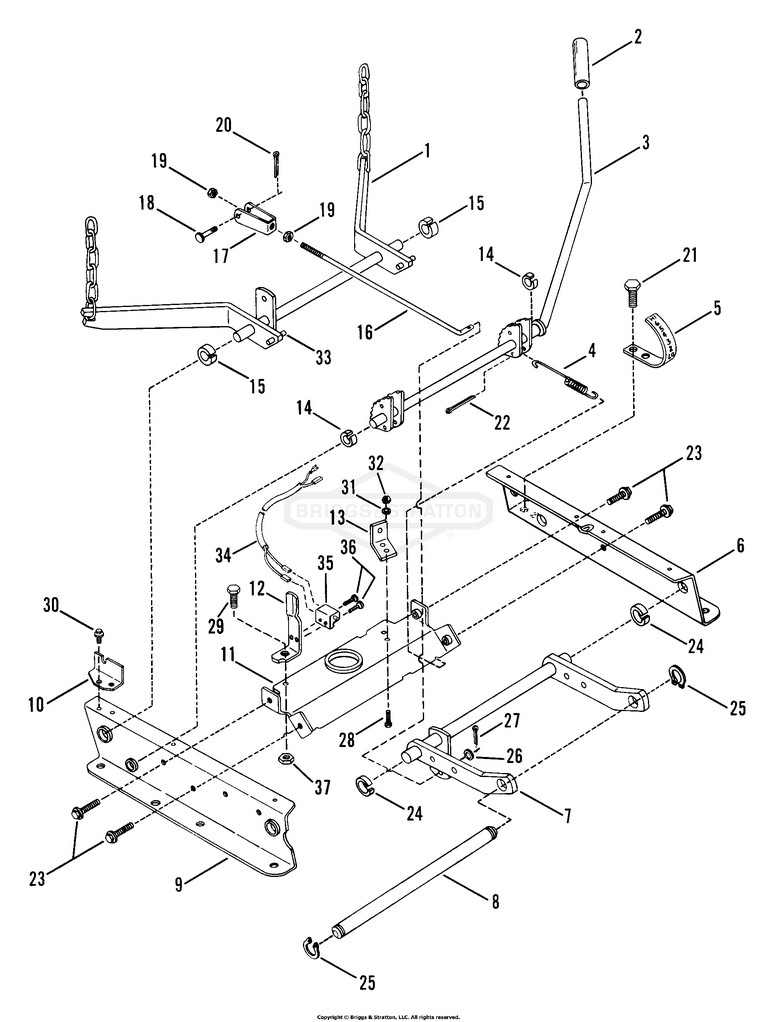

Zeichnung Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1 - Zeichnungsgruppe Rails, Lift Arms, Cam Lift:

Zeichnung

Sollten Sie Fragen zu einem Ersatzteil haben, können Sie uns gerne eine Ersatzteilanfrage stellen.

Hier finden Sie alle Ersatzteile von Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1 der Zeichnungsgruppe Rails, Lift Arms, Cam Lift:
Standard
20 40 60 80
Artikel 1 - 28 von 28
ANCHOR (Pos Nr. 13) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
15,58 € *
Lieferzeit: 2 - 10 Werktage
BRACE, Top Rail (Pos Nr. 11) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
36,80 € *
Lieferzeit: 2 - 10 Werktage
CLEVIS, Timing Rod (Pos Nr. 17) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
39,80 € *
Lieferzeit: 2 - 10 Werktage
COTTER-PIN, 1/8 x 3/4" (Pos Nr. 27) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
5,15 € *
Lieferzeit: 2 - 10 Werktage
COTTER-PIN, 3/32 x 3/4" (Pos Nr. 20) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
5,15 € *
Lieferzeit: 2 - 10 Werktage
COTTER-PIN, 5/32 x 1" (Pos Nr. 22) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
5,15 € *
Lieferzeit: 2 - 10 Werktage
GRIP, Cam Lift Lever (Pos Nr. 2) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
7,40 € *
Lieferzeit: 2 - 10 Werktage
GUIDE, Belt (Pos Nr. 12) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
10,85 € *
Lieferzeit: 2 - 10 Werktage
NUT, 3/8-24 Hex (Pos Nr. 19) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
5,98 € *
Lieferzeit: 2 - 10 Werktage
NUT, 5/16-18 Hex Flange Lock (Pos Nr. 37) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
5,30 € *
Lieferzeit: 2 - 10 Werktage
NUT, 5/16-24 Hex (Pos Nr. 32) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
5,68 € *
Lieferzeit: 2 - 10 Werktage
PIN, 3/8 x 1 1/16" Clevis (Pos Nr. 18) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
11,90 € *
Lieferzeit: 2 - 10 Werktage
PIN, Roll (Pos Nr. 33) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
5,53 € *
Lieferzeit: 2 - 10 Werktage
PLATE, Indicator (Pos Nr. 5) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
41,45 € *
Lieferzeit: 2 - 10 Werktage
RAIL, Left Hand (Pos Nr. 6) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
11,75 € *
Lieferzeit: 2 - 10 Werktage
RAIL, Right Hand (Pos Nr. 9) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
14,38 € *
Lieferzeit: 2 - 10 Werktage
RING, 5/8" External Retaining (Pos Nr. 25) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
5,53 € *
Lieferzeit: 2 - 10 Werktage
RING, Blue (Pos Nr. 15) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
7,55 € *
Lieferzeit: 2 - 10 Werktage
RING, Red (Pos Nr. 24) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
6,43 € *
Lieferzeit: 2 - 10 Werktage
ROD, Timing (Pos Nr. 16) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
8,83 € *
Lieferzeit: 2 - 10 Werktage
SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx) (Pos Nr. 36) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
5,30 € *
Lieferzeit: 2 - 10 Werktage
SCREW, 1/4-20 x 1/2" Hex Head Cap Self-Tapping (Pos Nr. 30) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
5,38 € *
Lieferzeit: 2 - 10 Werktage
SCREW, 3/8-16 x 1" Hex Head Self-Tapping (Pos Nr. 23) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
6,05 € *
Lieferzeit: 2 - 10 Werktage
SCREW, 5/16-24 x 3/4" Hex Head Cap (Pos Nr. 28) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
5,30 € *
Lieferzeit: 2 - 10 Werktage
SUPPORT ROD (Front Lift Arm to Frame Front End) (Pos Nr. 8) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
29,45 € *
Lieferzeit: 2 - 10 Werktage
SWITCH, Interlock (Pos Nr. 35) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
11,69 € *
Lieferzeit: 2 - 10 Werktage
WASHER, 3/8" Flat (Pos Nr. 26) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
5,15 € *
Lieferzeit: 2 - 10 Werktage
WASHER, 5/16 Internal Tooth Lock (Pos Nr. 31) passend für Snapper 80168 - Y30081B, 30" 8 HP Mid-Duty Commercial Estate Mower Series 1
5,15 € *
Lieferzeit: 2 - 10 Werktage
Artikel 1 - 28 von 28
