Mower Deck Group

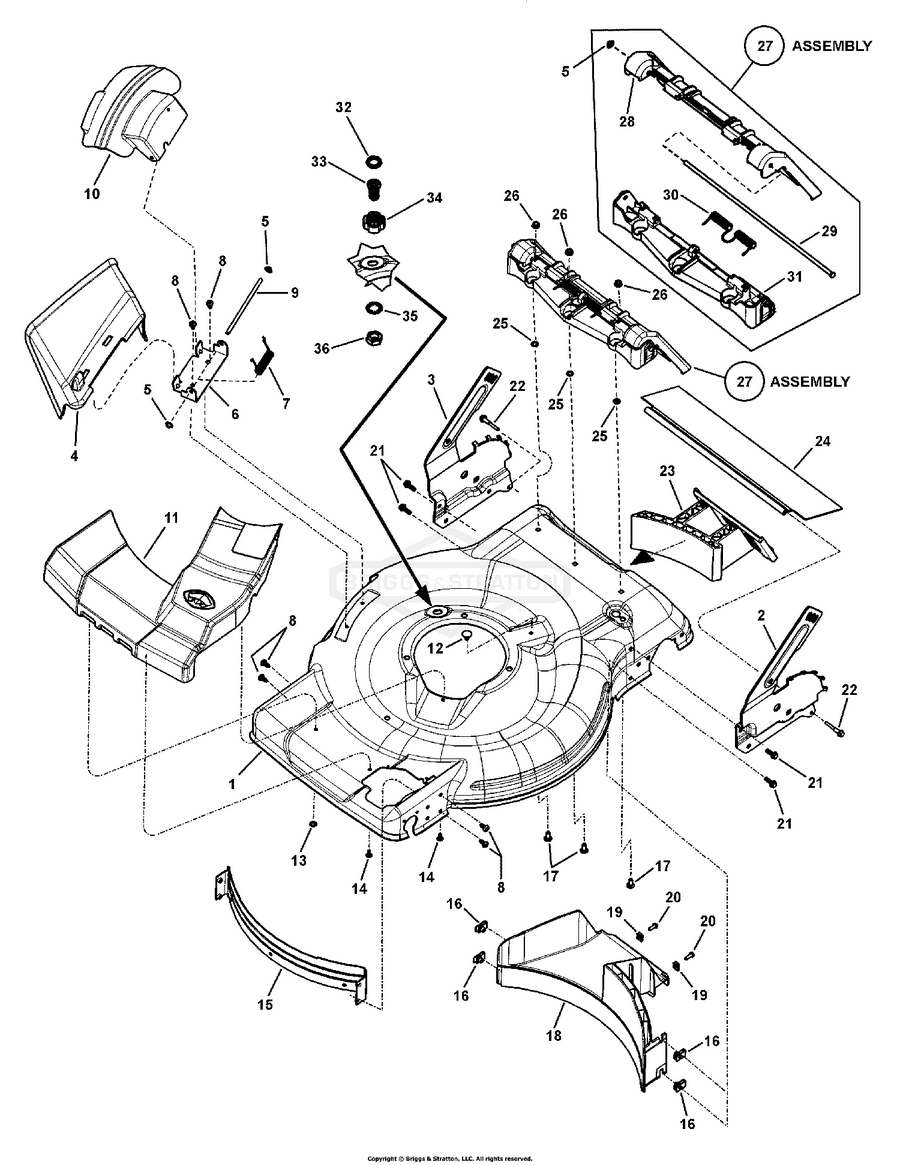

Zeichnung Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif." - Zeichnungsgruppe Mower Deck Group:

Zeichnung

Sollten Sie Fragen zu einem Ersatzteil haben, können Sie uns gerne eine Ersatzteilanfrage stellen.

Hier finden Sie alle Ersatzteile von Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif." der Zeichnungsgruppe Mower Deck Group:
Standard
20 40 60 80
Artikel 1 - 20 von 29
ADAPTOR, Washout Port, WBM (Pos Nr. 33) passend für Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif."
6,58 € *
Lieferzeit: 2 - 10 Werktage
ASSEMBLY, Door, 22" WBM (Pos Nr. 27) passend für Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif."
50,60 € *
Lieferzeit: 2 - 10 Werktage
BAFFLE, Front, Galv. (Pos Nr. 15) passend für Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif."
59,83 € *
Lieferzeit: 2 - 10 Werktage
BOLT, 1/4-20 x 3/4" Hex Flange Lock, GR 5 (Pos Nr. 21) passend für Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif."
6,05 € *
Lieferzeit: 2 - 10 Werktage
BOLT, 1/4-20 x 5/8" Flat Head Square Neck, GR 5 (Pos Nr. 17) passend für Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif."
5,38 € *
Lieferzeit: 2 - 10 Werktage
BOLT, Drag Shield, 1/4-20 x 1-1/2" (Pos Nr. 22) passend für Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif."
5,83 € *
Lieferzeit: 2 - 10 Werktage
BRACKET, Chute (Pos Nr. 6) passend für Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif."
12,65 € *
Lieferzeit: 2 - 10 Werktage
BRACKET, Lower Handle, LH, Hi-Wheel (Pos Nr. 2) passend für Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif."
43,93 € *
Lieferzeit: 2 - 10 Werktage
BRACKET, Lower Handle, RH, Hi-Wheel (Pos Nr. 3) passend für Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif."
43,93 € *
Lieferzeit: 2 - 10 Werktage
CHUTE, Side Discharge, 22" WBM (Pos Nr. 4) passend für Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif."
44,38 € *
Lieferzeit: 2 - 10 Werktage
COVER, SPX, Front Wheel Drive (Pos Nr. 11) passend für Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif."
78,28 € *
Lieferzeit: 2 - 10 Werktage
DOOR HINGE, Rear Discharge (Pos Nr. 31) passend für Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif."
27,65 € *
Lieferzeit: 2 - 10 Werktage
GUARD, Rear, 22" (Pos Nr. 24) passend für Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif."
12,88 € *
Lieferzeit: 2 - 10 Werktage
NUT, 3/16" Push (Pos Nr. 13) passend für Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif."
5,68 € *
Lieferzeit: 2 - 10 Werktage
NUT, 5/8-11, NC-2B Black Hex Jam (Pos Nr. 36) passend für Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif."
6,58 € *
Lieferzeit: 2 - 10 Werktage
PLUG, Mulching, 22" Deck (Pos Nr. 23) passend für Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif."
38,90 € *
Lieferzeit: 2 - 10 Werktage
PUSHNUT, 1/4" (Pos Nr. 5) passend für Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif."
5,23 € *
Lieferzeit: 2 - 10 Werktage
REAR BAFFLE, Front Wheel Drive, WBM (Pos Nr. 18) passend für Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif."
80,83 € *
Lieferzeit: 2 - 10 Werktage
RETAINER, 1/4" Bolt (Pos Nr. 25) passend für Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif."
5,23 € *
Lieferzeit: 2 - 10 Werktage
ROD, Pivot (Pos Nr. 9) passend für Snapper 7800779 - NSPXV2270HW, 22" 7.0GT 3N1 Self-Propelled High Wheel Mower "Calif."
8,38 € *
Lieferzeit: 2 - 10 Werktage
Artikel 1 - 20 von 29
